SDL Desktop - Adding GIS Layers

9 STEPS

1. First, log in to the SDL Admin with your Administrator credentials

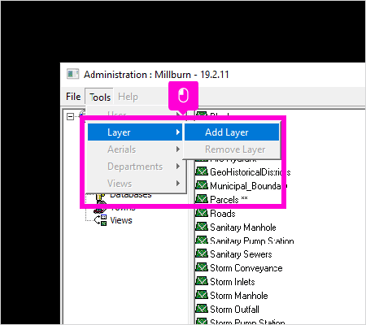

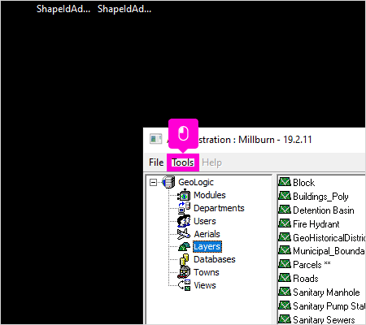

2. Highlight Layers and then select Tools



3. Select Layer from the drop-down menu and then Add Layer

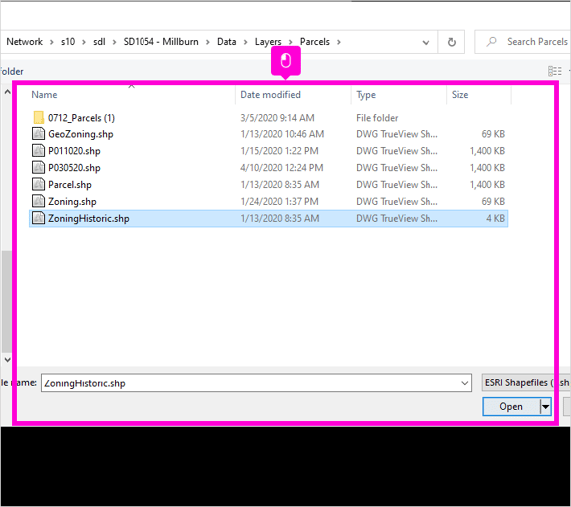

4. Select the Shapefile you want to add to GeoClient and then click Open. (Note: Be sure to use a network path with the file location so all users have access)



5. Doubleclick the Layer that was just added



6. Select the Label tab to select the Field that will appear on the map



7. Click OK

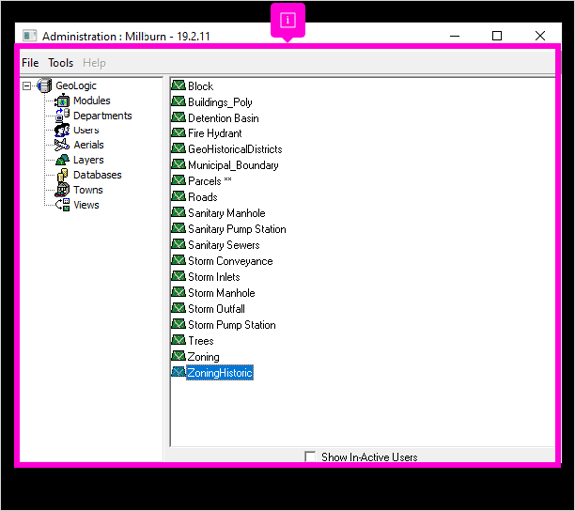

8. A pop-up message will appear. Review and click OK



9. Repeat the process to add additional layers.



Here's an interactive tutorial for the visual learners
